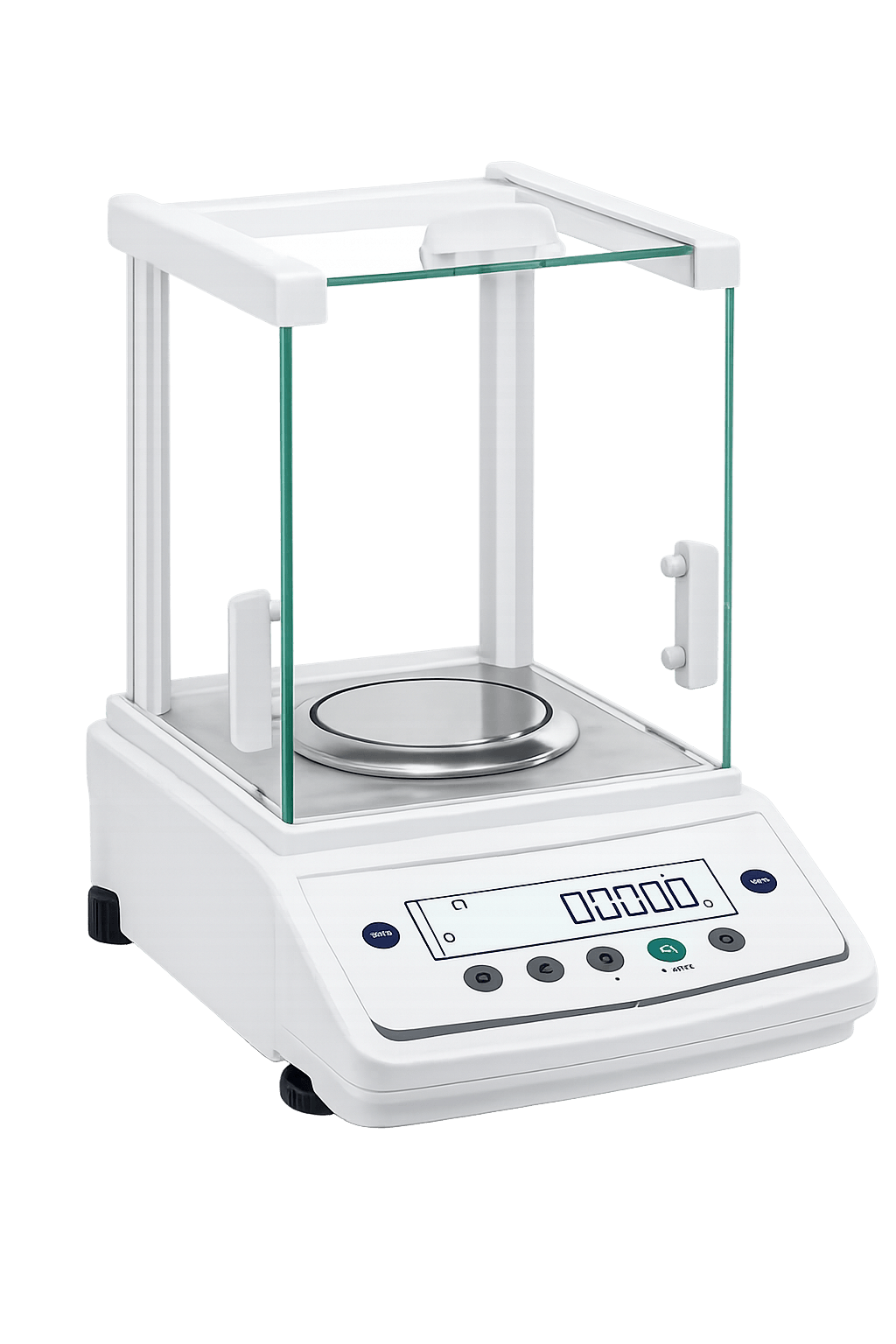

Quantum 5000
High-precision analytical balance with automatic internal calibration and 0.1 mg readability.
Quantum 5000
A professional analytical balance with 220 g capacity, 0.1 mg readability and automatic internal calibration.
- Highly accurate and reliable results
- Internal calibration
- Local service support
- User-friendly operation
Built for Reliable Daily Use
QUANTUM 5000 is a high-precision analytical balance designed for accurate and reliable weighing in laboratories, jewellery businesses and professional quality-control environments.
It offers a capacity of 220 grams with a readability of 0.1 milligram, making it suitable for applications where precise measurements and consistent repeatability are essential.
The balance features automatic internal calibration, an alpha-numerical backlit display and support for multiple weighing modes and units. Its stable performance, compact construction and professional compliance make it suitable for demanding daily use.
Technical Details
| Model | Quantum 5000 |
|---|---|
| Capacity | 220 g |
| Readability | 0.1 mg |
| Repeatability (+/-) | 0.1 mg |
| Linearity (+/-) | 0.2 mg |
| Tare Range (Subtractive) | -220 g |
| Minimum Sample Weight as per USP | 160 mg |
| Minimum Weight as per (U=1%, sd=2) | 16 mg |
| Pan Size | 90 mm diameter / 3.5 inch |
| Response Time | 2-3 seconds |
| Display | Alpha Numerical Backlit Display |
| Calibration | Automatic Internal |
| Units of Measure | g, mg, ct, GN, mo, oz, dwt, tTI, tTH, tTS, mom, Bat, MS |
| Operating Temperature | 15°C–35°C |
| Sensitivity Drift | ±1 ppm/°C within temperature range +15°C to 35°C |
| Application Modes | PCS, % Weighing, Animal/Dynamic Weighing, Check Weighing, Automatic Density Determination and Formulation |
| Power Supply | A/C Adapter 230V or 115V ±20%, 50-60 Hz |
| Compliance | ISO, GLP, GMP and USP Compliance |
| Packing Size | 470 × 310 × 500 mm (L × W × H) |
| Net Weight / Gross Weight | 8.0 kg / 9.3 kg |
