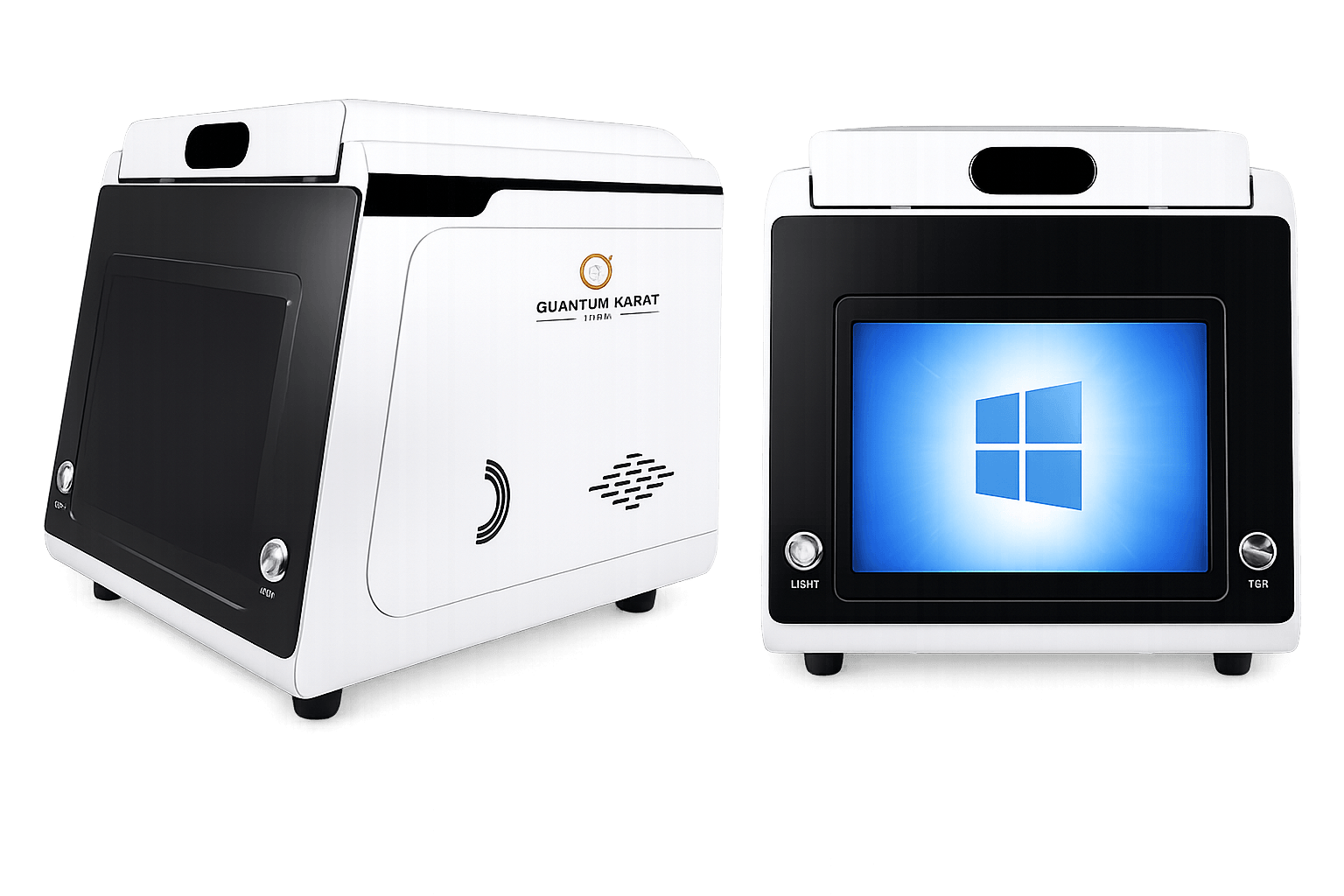

Quantum 9000
Reliable XRF gold analysis for fast, non-destructive precious-metal testing.
Quantum 9000
A professional XRF gold analyser designed for accurate testing, fraud detection and dependable daily operation.
- Highly accurate and reliable results
- Data storage and report printing
- Local service support
- User-friendly operation
- Detects fraud and gold plating
- Windows-based operation
Built for Reliable Daily Use
QUANTUM 9000 is an XRF gold analyser designed for accurate and reliable precious-metal testing.
It supports non-destructive analysis of solid, powder and liquid samples and can identify multiple elements, including gold, silver, copper, zinc and other precious metals.
The machine includes specialized precious-metal analysis software, data storage, report printing and Windows-based operation. Its user-friendly workflow and fraud and gold-plating detection capabilities make it suitable for jewellers, bullion traders, assaying centres and professional testing laboratories.
Technical Details
| Model | Quantum 9000 |
|---|---|
| Analysis Range | ppm - 99.99% |
| Test Sample | Solid, Powder, Liquid |
| Test Elements | Au, Ag, Cu, Zn, Cd, In, Ni, Pd, Ru, Rh |
| Accuracy | RSD < 0.1% (Au > 99.9%) |
| Detector | High-performance Si-PIN detector |
| Filter | Single filter |
| Analysis Software | Specialized software for precious metal analysis |
| Multi-channel Analyzer | 4096-channel Multi-channel Analyzer |
| Test Time | 30-100 seconds |
| High Voltage Power Supply | 0-50 KV |
| X-ray Tube Voltage | 5-50 KV |
| X-ray Tube Current | 0-1000 µA |
| Ambient Temperature | 10-35°C |
| Relative Humidity | 35-70% |
| Power Requirement | AC110V-230V, 50/60Hz |
| Instrument Dimensions | 392 × 350 × 354 mm |
| Sample Chamber Size | 260 × 244 × 95 mm |
| Instrument Weight | 27.66 kg / 31.5 kg |
| Voltage Stabilizer | Inbuilt |
Discuss Your Testing Requirement
Send your use case and expected volume. We’ll help you evaluate the best fit.
Contact Sales
